5200

Great Acoustic Performance

Super Ambient Noise Rejection

Rugged Construction

Description

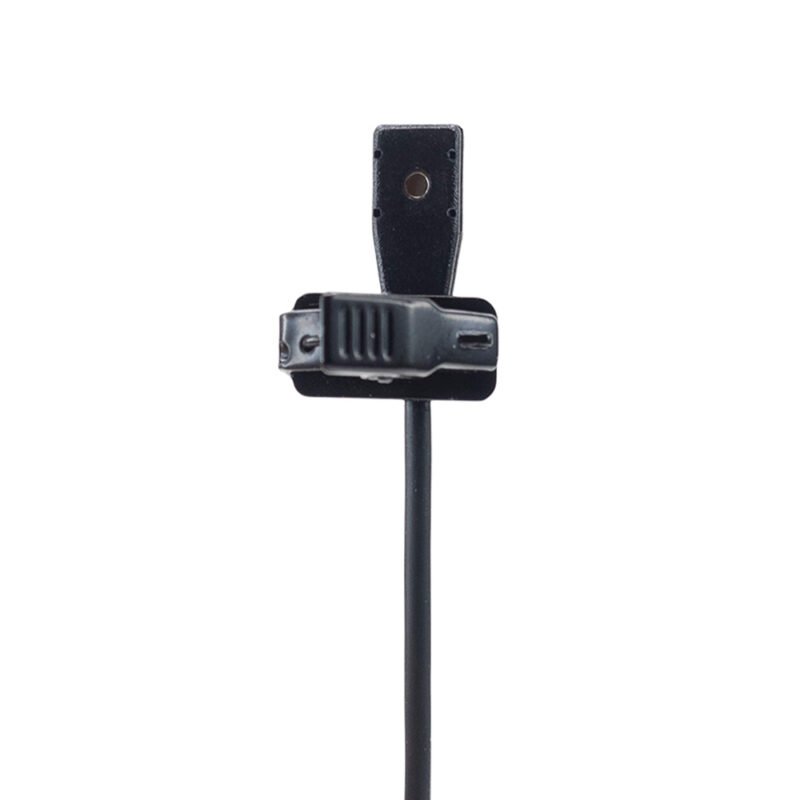

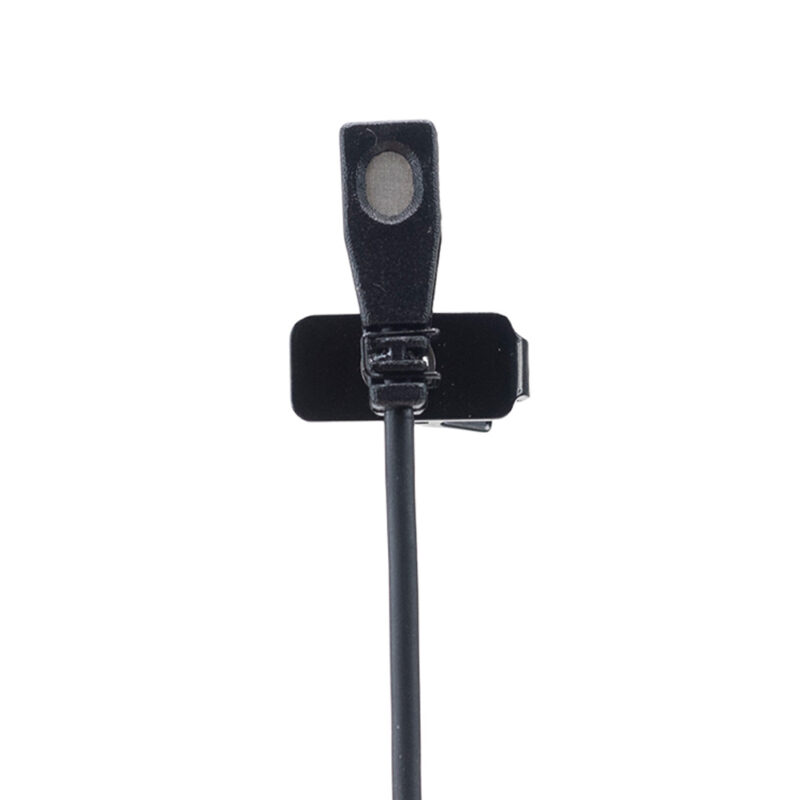

A subminiature microphone capsule with over-molded plastic housing and cable for convenient mounting on lapel or tie for communications, public address, music recording, etc., this microphone features a flat, extended frequency response suitable for reproduction of voice or musical instruments.

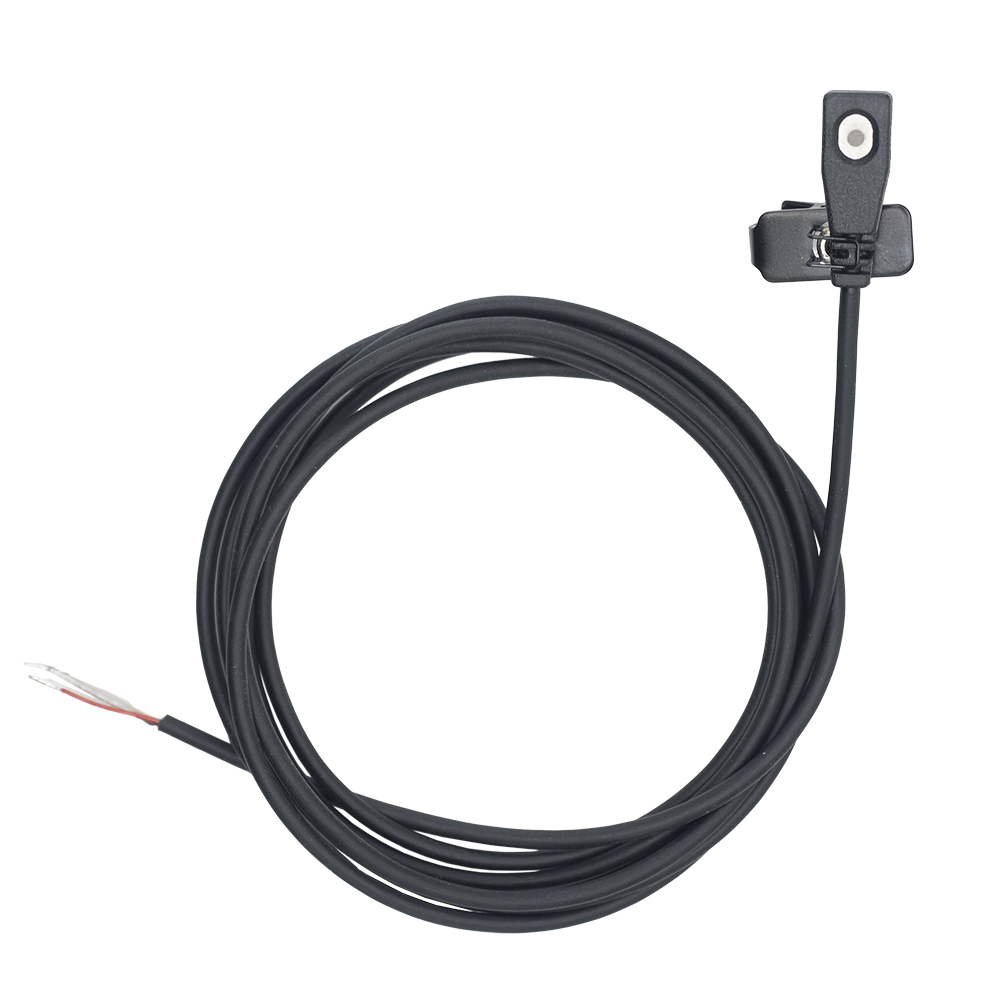

A 1.5 meter long shielded cable of 2.5mm diameter is provided in the basic configuration. This cable includes two wires plus a spiral wound shield, which are soldered to the microphone capsule.

A composite steel retainer plus molded elastic strain relief provide a very rugged miniature package.

Noise transmission from handling and clothing movement is very low. Model 5200 is wide band omni-directional. Internal RFI suppression is included.

Specifications

Microphone
Generating Element: Electret Condenser
Polar Pattern: Omni-Directional
Frequency Response: 100 Hz to 20 kHz
Sensitivity: -40 dB re 1V/Pa @ 1 kHz
Maximum Input SPL: 125 dB
Noise Level: 27 dB “A” Weighted
Dynamic Range: 97 dB
Signal/Noise Ratio: 67 dB
Bias Voltage: 1.5 V to 9.0 V
General
Wire Configuration: B+ : Red
Sig : White
Gnd: Shield
Cable Length: 1.5 m
Weight: 18 grams (without cable/connector)
Color: Black or Beige
Standard Accessories: Windscreen, Cable Clip

PDF Datasheet

Download
