6200

Great Acoustic Performance

Superb Ambient Noise Rejection

Rugged Construction

Water Ingress Protection IP-X7

Description

The Model 6200 microphone is an M‐77 equivalent, designed to fit standard communication headsets from David Clark, Telex, etc. that are fitted with a U‐173/U mating connector.

The high quality Bi‐Directional Noise Cancelling electret microphone is renowned for its effective rejection of loud surrounding noises but provides voice communication with utmost clarity.

Specifications

Microphone Style MH-16
Generating Element: Electret Condenser
Polar Pattern: Noise-Canceling

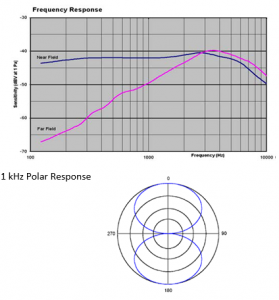

Frequency Response: 100 Hz to 10 kHz
Sensitivity
(1 kHz @ ¼” distance):
-42 dB re 1 Vrms / Pa
Bias Voltage: 5 Vdc to 15 Vdc
Operating Temperature: -20 °C to +70 °C
Humidity: 0 to 100% (non‐condensing)
General
Weight: 6 g
Color: Black
Dimension (mm): L: 44.7 / W: 12.7 / H: 10.5
Connector: Mates with U‐173/U (MP‐101)
Water Ingress Protection: IEC 60529 IP‐x7(30 min @ 1 m)

PDF Datasheet

Download
