1200

Great Acoustic Performance

High sound level with bipolar bias connection

Rugged Construction

Description

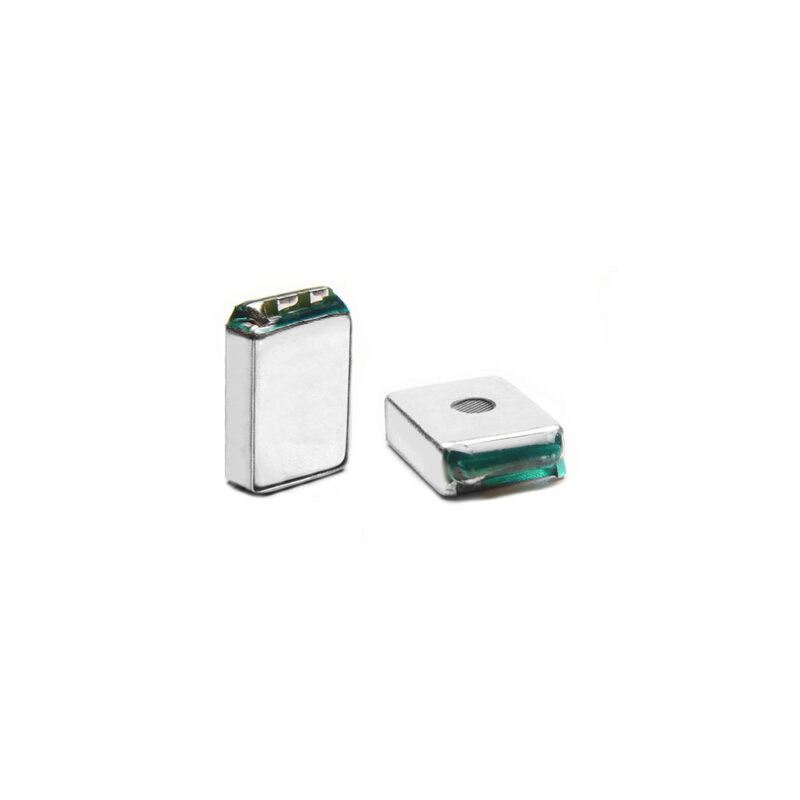

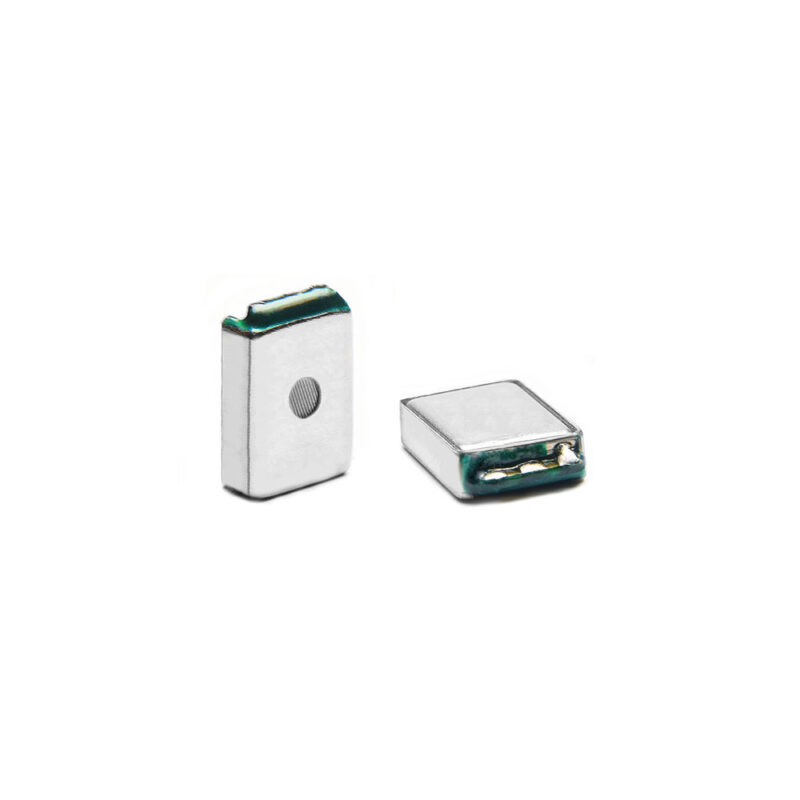

A high-quality electret microphone with an integral preamplifier, its wide and flat frequency response with a slight peak around 10 kHz makes it perfect for use in most speech and professional audio applications. It can be even be used for high sound levels of up to 132 dB SPL with bipolar bias connection.

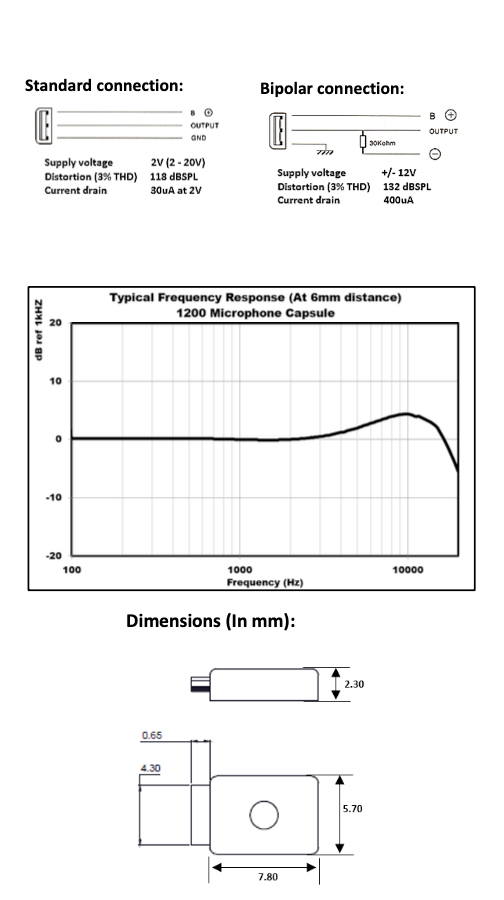

Specifications

Generating Element: Electret Condenser
Polar Pattern: Omni-Directional
Sensitivity: -42 dB re 1V/Pa @ 1 kHz
Noise Level: 25 dB “A” Weighted
Max SPL, THD < 3%: 118 dBSPL (At 2V)
132 dBSPL (With bipolar bias connection)
Bias voltage: 2 ~ 20 V
Output Impedance: 2 Kohms

PDF Datasheet

Download
