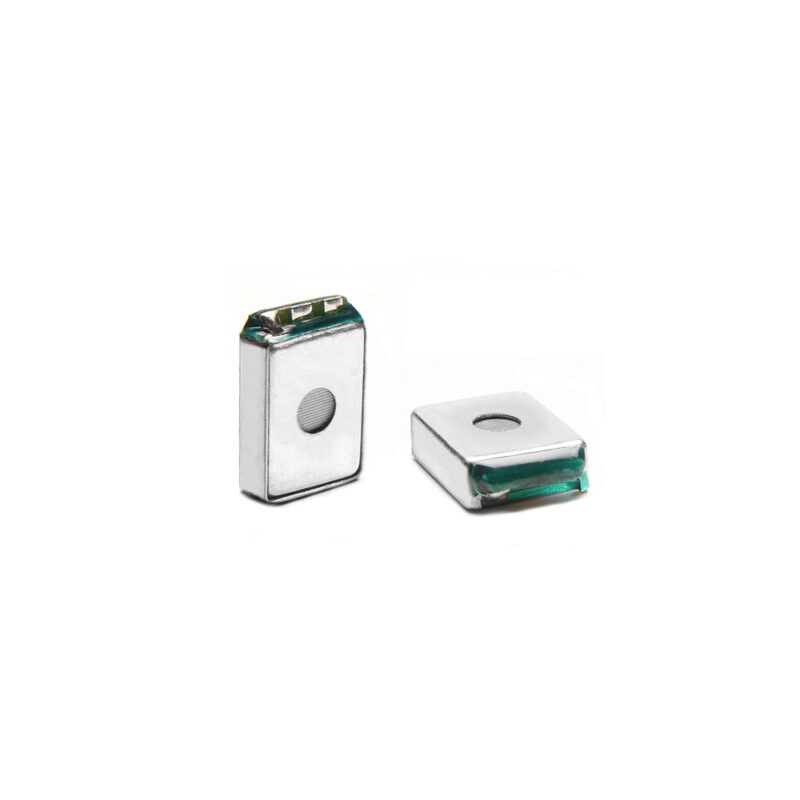

1525

Great Acoustic Performance

Tight Super-Cardioid Pattern

Rugged Construction

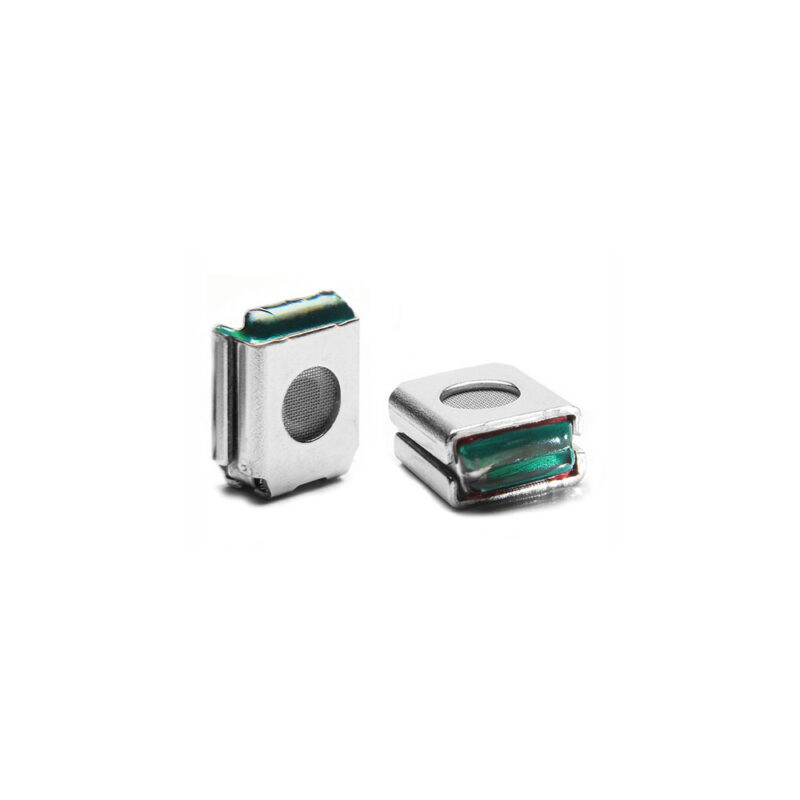

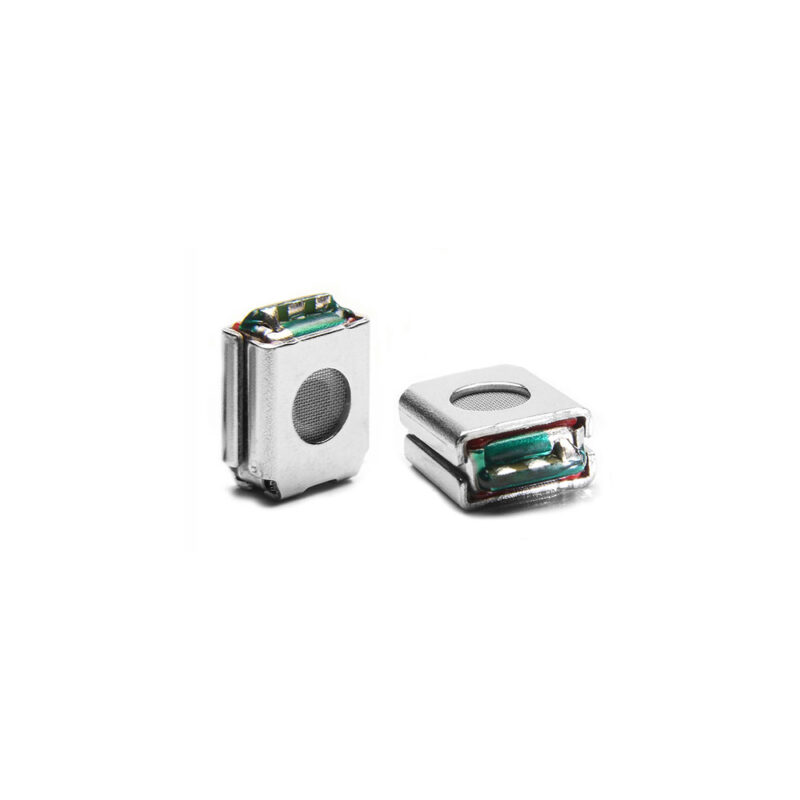

Waterproofing (IPX7) version available

Description

Model 1525 microphone is an amazing super-cardioid microphone capsule that provides a very ‘focused’ pick- up with high rejection of ambient noise and acoustic feedback.

Ideal for use in live sound stages, film, sports events and documentaries recording.

Specifications

Generating Element: Electret Condenser
Polar Pattern: Supercardioid
Sensitivity: -42 dB re 1V/Pa @ 1 kHz
Noise Level: 25 dB “A” Weighted
Max SPL, THD < 3%: 118 dBSPL (At 2V)
140 dBSPL (With bipolar bias connection)
Bias voltage: 2 ~ 20 V
Output Impedance: 1 Kohms
